Balance Headphone Amp.@model 465

model 465@2,500,000JPY

It will be ordered when the price is paid in full with derivery fee.
It can not be canceled because it is made to order.

It will be delivered 1 to 4 months after receiving the order.

Serial numbers of model465 are attached from No. 001 on front and rear panel in order by order.
I can't never undertake any special orders for serial numbers.

model 465 is free shipping only when shipped by EMMS , FedEx or DHL.
However, you are responsible for paying customs duties.
But I'm sorry I can't make fake invoice in any case.

If you wish to have your item delivered by M.Masuda, additional travel expenses and customs duties are required.
I will estimate the amount.
(East Asia+400,000 JPY ~, Southeast Asia+700,000 JPY ~, Oceania +900,000 JPY ~, North America, Europe +1.3 million JPY ~)
Please write in the comments that you would like delivery by M.Masuda.

< Derivery Fee withinclude Special Pelican Case for model 465>



@

This model465 adopts the independent left and right power, twin balance monaural.

A clean, stress-free sound that does not feel the presence of the amp is a sound appropriate for a flagship model.

The output of this amplifier is balanced output 3.5 W + 3.5 W (32 ƒΆ load).

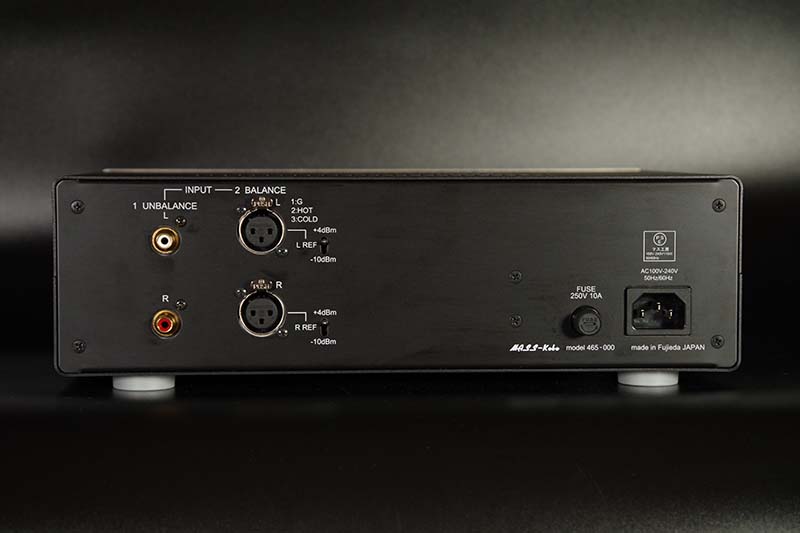

Input is Balanced XLR 3 pin and Unbalanced RCA.

Reference input level of Balanced are + 4 dBm / - 10 dBm selectable.

If you connect a device with an unbalanced output to a balanced input, the output will not be balanced.

Connect devices with unbalanced output to the RCA input terminals.

Currently we can manufacture 2 units, but after that it may take 4 months to several years depending on the supply of parts.

ƒSpecifications„
Model : Full Balanced Stereo headphone amp
Input : Balance = Electronically Balanced XLR3 x2 , Unbalanced = RCA x2
Output : Balance = XLR4-31 x 1 or XLR3-31 x 2(L,R) , Unbalance = ƒΣ6.3 TRS
Input Impedance : Balance = 3.7kOhm(XLR) , Unbalance = 20kOhm(RCA)
Reference Input Level : Balance = +4dBm/-10dBm (Selectable) , Unbalance = -10dBm
Maximum Input Level : balance = +30dBm , Unbalance = +20dBm
Maximum Output Level (P-P) : Balance = 32V (with 32ƒΆ loaded, 1kHz, THD+N 0.05%)Unbalance = 22V (with 32ƒΆ loaded, 1kHz, THD+N 0.05%)
@@@@@@@@@@@@@@ (RMS): Balance = 10.7V (with 32ƒΆ loaded, 1kHz, THD+N 0.05%) Unbalance = 7.4V (with 32ƒΆ loaded, 1kHz, THD+N 0.05%)
Maximum Output without Distortion : Balance = 3.8W+3.8W , Unbalance =1.8W+1.8W (with 32 ohm load, 1kHz, THD+N 0.05%)
Frequency Characteristics : 10Hz - 100kHz (-0.5dB) , 17Hz-50KHz(-0.2dBm)
Power Supply : AC100 - 240V, 50/60Hz Electric Energy Consumption : 0.9A (with AC100V)
Size : 330mmW x 247mmD x 104mmH (Knob, projecting part of connector not included )
Weight : 6.1kg (without the power cable)

¦Design or specifications may change due to improvement.
